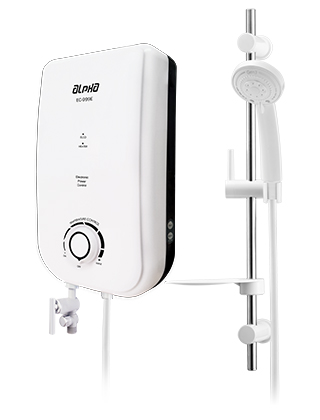

EC-999E
Introducing EC-999 Series. Smaller in size but does not
compromise the capability of heating water.
Suitable for any bathrooms with space contraint.
Safety Features
-
Built-in ELCB (Optional Double Poles)
-
Line Fault Indicator (Optional)
-
Splash Proof Casing - IP25 Standard
-
Flow Switch System
-
Thermal Cut-out
Basic Features
Technical Specification
|
Heater Rating
|
3.5kW to 5.5kW, 220 - 240V~ 50Hz |
Water Connection |
Ø15.0mm (1/2”BSP) |
Operating Condition |
X3E - Open Outlet
|
Protection Against Electric Shock |
Class 1 |
Water Temperature Control |
Electronics |
Degree of Protection |
IP25 |
Minimum Flow Rate |
3 liter / minute |
Heater Dimension |
190mm(W) x 318.25mm(L) x 75.3mm(H) |
Minimum Pressure |
20 kPa (0.2 bar/2.9 psi) |
Heater Dimension |
230mm(W) x 380mm(L) x 68mm(H) |
Heater Nett Weight |
EC-999E - 1.4kg |
*Specifications and products shown are correct at the time of printing and may subject to change without prior notice. |
|
EC-999E C/W ELCB |
 |
* E - Models come with Built-in Electronic ELCB. |
| |
|
