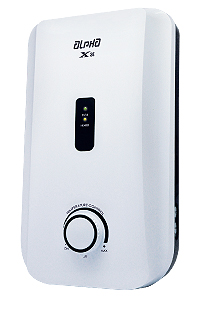

X3E
Another revolutionary product by Alpha. Introducing the X3 Series. Smaller in size but does not compromise the capability of heating water. It is suitable for bathrooms with space constraint.
Safety Features
-
Built-in ELCB (Optional Double Poles)
-
Line Fault Indicator (Optional)
-
Splash Proof Casing - IP25 Standard
-
Flow Switch System
-
Thermal Cut-out
Basic Features
Technical Specification
|
Heater Rating
|
3.5kW to 5.5kW, 220 - 240V~ 50Hz |
Water Connection |
Ø15.0mm (1/2”BSP) |
Operating Condition |
X3E - Open Outlet
|
Protection Against Electric Shock |
Class 1 |
Water Temperature Control |
Electronics |
Degree of Protection |
IP25 |
Minimum Flow Rate |
3 liter / minute |
Heater Dimension |
190mm(W) x 318.25mm(L) x 75.3mm(H) |
Minimum Pressure |
20 kPa (0.2 bar/2.9 psi) |
Heater Dimension |
230mm(W) x 380mm(L) x 68mm(H) |
Heater Nett Weight |
X3E - 1.4kg |
*Specifications and products shown are correct at the time of printing and may subject to change without prior notice. |
|
X3E c/w ELCB |
 |
* E - Models come with Built-in Electronic ELCB. |
| |
|
